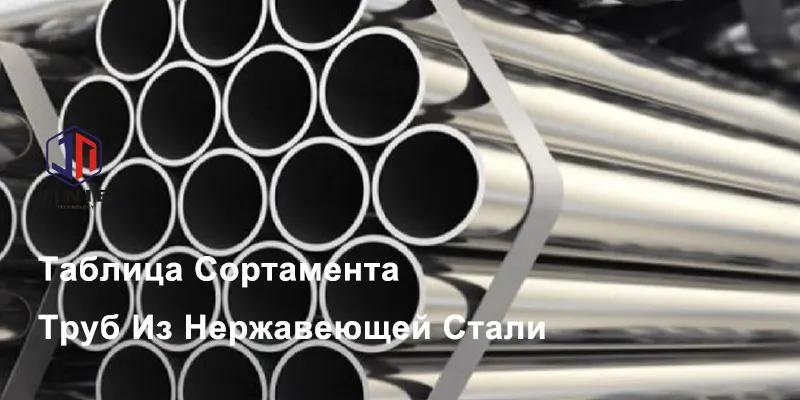

Размеры и номинальная масса сварных и бесшовных труб из нержавеющей стали с гладкими концами.
| Номинальный размер трубы (DN) | Номер спецификации | Наружный диаметр,
дюймы (мм) |
Толщина стенки,
дюймы (мм) |
Гладкий конец
Вес (масса) фунт/фут (кг/м) |
| 1/8(6) 1/8(6) 1/8(6) 1/8(6) 1/8(6) |
5S 10S 40S 80S 160S |
0.405(10.29) 0.405(10.29) 0.405(10.29) 0.405(10.29) 0.405(10.29) |
…[Note(1)] 0.049(1.24)[Note (1)] 0.068(1.73) 0.095(2.41) 0.124(3.15） |
… 0.19(0.28) 0.24(0.37) 0.31(0.47) 0.37(0.55) |
| 1/4(8) 1/4(8) 1/4(8) 1/4(8) 1/4(8) |
5S 10S 40S 80S 160S |
0.540(13.72) 0.540(13.72) 0.540(13.72) 0.540(13.72) 0.540(13.72) |
… [Note (1)] 0.065(1.65)[Note(1)] 0.088(2.24) 0.119 (3.02) 0.145 (3.68） |
… 0.33(0.49) 0.43(0.63) 0.54(0.80) 0.61(0.91) |
| 3/8(10) 3/8(10) 3/8(10) 3/8(10) 3/8(10) |
5S 10S 40S 80S 160S |
0.675(17.14) 0.675(17.14) 0.675(17.14) 0.675(17.14) 0.675(17.14) |
… [Note(1)] 0.065(1.65)[Note(1)] 0.091 (2.31) 0.126(3.20) 0.158(4.01) |
… 0.42(0.63) 0.57 (0.84) 0.74(1.10) 0.87(1.30) |
| 1/2(15) 1/2(15) 1/2(15) 1/2(15) 1/2(15) |
5S 10S 40S 80S 160S |
0.840(21.34) 0.840(21.34) 0.840(21.34) 0.840(21.34) 0.840(21.34) |
0.065(1.65)[Note(1)] 0.083(2.11)[Note(1)] 0.109(2.77) 0.147(3.73） 0.188(4.78） |
0.54(0.80) 0.67(1.00) 0.85(1.27) 1.09(1.62) 1.31(1.95) |
| 3/4(20) 3/4(20) 3/4(20) 3/4(20) 3/4(20) |
5S 10S 40S 80S 160S |
1.050(26.67) 1.050(26.67 1.050(26.67) 1.050(26.67) 1.050(26.67) |
0.065(1.65)[Note(1)] 0.083(2.11)[Note(1)] 0.113(2.87） 0.154(3.91) 0.219(5.56) |
0.68(1.02) 0.86(1.28） 1.13(1.68) 1.48(2.19) 1.95(2.89) |
| 1(25) 1(25) 1(25) 1(25) 1(25) |
5S 10S 40S 80S 160S |
1.315(33.40 1.315(33.40) 1.315 (33.40) 1.315(33.40) 1.315(33.40) |
0.065(1.65)[Note(1)] 0.109(2.77)[Note(1)] 0.133 (3.38) 0.179(4.55） 0.250(6.35） |
0.87(1.29） 1.41(2.09） 1.68(2.50) 2.17(3.24） 2.85(4.24） |
| 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) |
5S 10S 40S 80S 160S |
1.660 (42.16) 1.660 (42.16) 1.660 (42.16) 1.660 (42.16) 1.660 (42.16) |
0.065(1.65)[Note(1)] 0.109(2.77)[Note(1)] 0.140(3.56) 0.191(4.85) 0.250(6.35) |
1.11(1.65) 1.81(2.69) 2.27(3.39） 3.00 (4.46) 3.77 (5.61) |
| 1 1/2 (40) 1 1/2 (40) 1 1/2 (40) 1 1/2 (40) 1 1/2 (40) |
5S 10S 40S 80S 160S |
1.900(48.26) 1.900(48.26) 1.900(48.26) 1.900(48.26) 1.900(48.26) |
0.065(1.65)[Note(1)] 0.109 (2.77)[Note(1)] 0.145(3.68) 0.200(5.08) 0.281(7.14) |
1.28(1.90） 2.09(3.11) 2.72 (4.05) 3.63(5.41) 4.86(7.24) |
| 2(50) 2(50) 2(50) 2(50) 2(50) |
5S 10S 40S 80S 160S |
2.375(60.32) 2.375(60.32) 2.375(60.32) 2.375(60.32) 2.375(60.32) |
0.065(1.65)[Note(1)] 0.109(2.77)[Note(1)] 0.154(3.91) 0.218(5.54) 0.344(8.74) |
1.61(2.39) 2.64(3.93) 3.66(5.44) 5.03(7.48) 7.47(11.12) |
| 2 1/2(65) 2 1/2(65) 2 1/2(65) 2 1/2(65) 2 1/2(65) |
5S 10S 40S 80S 160S |
2.875(73.02) 2.875(73.02) 2.875(73.02) 2.875(73.02) 2.875(73.02) |
0.083(2.11)[Note(1)] 0.120(3.05)[Note(1)] 0.203 (5.16) 0.276(7.01) 0.375(9.52) |
2.48(3.69) 3.53(5.26) 5.80(8.64) 7.67(11.41) 10.02(14.91) |
| 3(80) 3(80) 3(80) 3(80) 3(80) |
5S 10S 40S 80S 160S |
3.500(88.90) 3.500(88.90) 3.500(88.90) 3.500(88.90) 3.500(88.90) |
0.083(2.11)[Note(1)] 0.120(3.05)[Note(1)] 0.216(5.49) 0.300(7.62) 0.438(11.13) |
3.03 (4.52) 4.34(6.46) 7.58(11.29) 10.26(15.27 14.34(21.35) |
| 3 1/2(90) 3 1/2(90) 3 1/2(90) 3 1/2(90) |
5S 10S 40S 80S |
4.000(101.60) 4.000(101.60) 4.000(101.60) 4.000(101.60) |
0.083(2.11)[Note(1)] 0.120(3.05)[Note(1)] 0.226(5.74) 0.318(8.08) |
3.48(5.18) 4.98(7.41) 9.12(13.57) 12.52(18.64) |
| 4(100) 4(100) 4(100) 4(100) 4(100) |
5S 10S 40S 80S 160S |
4.500(114.30) 4.500(114.30) 4.500(114.30) 4.500(114.30) 4.500(114.30) |
0.083(2.11)[Note(1)] 0.120(3.05)[Note(1)] 0.237(6.02) 0.337(8.56) 0.531(13.49) |
3.92(5.84) 5.62(8.37) 10.80(16.08) 15.00 (22.32) 22.53(33.54) |
| 5(125) 5(125) 5(125) 5(125) 5(125) |
5S 10S 40S 80S 160S |
5.563(141.30) 5.563(141.30) 5.563(141.30) 5.563(141.30) 5.563(141.30) |
0.109(2.77)[Note(1)] 0.134(3.40)[Note(1)] 0.258(6.55) 0.375(9.52) 0.625(15.88) |
6.36(9.46) 7.78(11.56) 14.63(21.77) 20.80(30.94) 32.99(49.12) |
| 6(150) 6(150) 6(150) 6(150) 6(150) |
5S 10S 40S 80S 160S |
6.625(168.28) 6.625(168.28) 6.625(168.28) 6.625(168.28) 6.625(168.28) |
0.109(2.77)[Note(1)] 0.134(3.40)[Note(1)] 0.280(7.11) 0.432(10.97) 0.719(18.26) |
7.59(11.31) 9.30(13.83) 18.99(28.26) 28.60(42.56) 45.39(67.56) |
| 8(20) 8(200) 8(200) 8(200) |
5S 10S 40S 80S |
8.625(219.08) 8.625(219.08) 8.625(219.08) 8.625(219.08) |
0.109(2.77)[Note(1)] 0.148(3.76)[Note(1)] 0.322(8.18) 0.500(12.70) |
9.92(14.78) 13.41(19.97) 28.58(42.55) 43.43(64.64) |
| 10(250) 10(250) 10(250) 10(250) |
5S 10S 40S 80S |
10.75(273.0) 10.75(273.0) 10.75(273.0) 10.75(273.0) |
0.134(3.40)[Note(1)] 0.165(4.19)[Note(1)] 0.365(9.27) 0.500(12.70)[Note(2)] |
15.21(22.61) 18.67(27.78) 40.52(60.29) 54.79(81.53) |
| 12(300) 12(300) 12(300) 12(300) |
5S 10S 40S 80S |
12.75(323.8) 12.75(323.8) 12.75(323.8) 12.75(323.8) |
0.156(3.96)[Note(1)] 0.180(4.57)[Note(1)] 0.375(9.52)[Note(2)] 0.500(12.70)[Note(2)] |
21.00(31.24) 24.19(35.98) 49.61(73.79) 65.48(97.44) |
| 14(350) 14(350) 14(350) 14(350) |
5S 10S 40S 80S |
14.00(355.6) 14.00(355.6) 14.00(355.6) 14.00(355.6) |
0.156(3.96)[Note(1)] 0.188(4.78)[Notes(1),(2)] 0.375(9.52)[Note(2)] 0.500(12.70)[Note(2)] |
23.09(34.34) 27.76(41.36) 54.62(81.25) 72.16(107.40) |
| 16(400) 16(400) 16(400) 16(400) |
5S 10S 40S 80S |
16.00(406.4) 16.00(406.4) 16.00(406.4) 16.00(406.4) |
0.165(4.19)[Note(1)] 0.188(4.78)[Notes(1),(2)] 0.375(9.52)[Note(2)] 0.500(12.70)[Note(2)] |
27.93(41.56) 31.78(47.34) 62.64(93.18) 82.85(123.31) |
| 18(450) 18(450) 18(450) 18(450) |
5S 10S 40S 80S |
18.00(457.2) 18.00(457.2) 18.00(457.2) 18.00(457.2) |
0.165(4.19)[Note(1)] 0.188(4.78)[Notes(1),(2)] 0.375(9.52)[Note(2)] 0.500(12.70)[Note(2)] |
31.46(46.81) 35.80(53.33) 70.65(105.17) 93.54(139.16) |
| 20(500) 20(500) 20(500) 20(500) |
5S 10S 40S 80S |
20.00(508.0) 20.00(508.0) 20.00(508.0) 20.00(508.0) |
0.188(4.78)[Note(1)] 0.218(5.54)[Notes(1),(2)] 0.375(9.52)[Note(2)] 0.500(12.70)[Note(2)] |
39.82(59.32) 46.10(68.65) 78.67(117.03) 104.23(155.13) |
| 22(550) 22(550) 22(550) 22(550) |
5S 10S 40S 80S |
22.00(558.8) 22.00(558.8) 22.00(558.8) 22.00(558.8) |
0.188(4.78)[Note(1)] 0.218(5.54)[Notes(1),(2)] … … |
43.84(65.31) 50.76(75.59) … … |
| 24(600) 24(600) 24(600) 24(600) |
5S 10S 40S 80S |
24.00(609.6) 24.00(609.6) 24.00(609.6) 24.00(609.6) |
0.218(5.54)[Note(1) 0.250(6.35)[Note(1)] 0.375(9.52)[(Note2)] 0.500(12.70)[Note(2)] |
55.42(82.53) 63.47(94.47) 94.71(140.89) 125.61(186.95) |
| 30(750) 30(750) 30(750) 30(750) |
5S 10S 40S 80S |
30.00(762.0) 30.00(762.0) 30.00(762.0) 30.00(762.0) |
0.250(6.35)[Note(1)] 0.312(7.92)[Note(1)] … … |
79.51(118.34) 99.02(147.29) … … |
ОБЩИЕ ПРИМЕЧАНИЯ:
(a) 1 дюйм = 25,4 мм.
(b) 1 фунт/т = 1,4882 кг/м.
(c) Значения массы (веса) указаны в фунтах на погонный фут (килограммах на метр) и относятся к трубам из углеродистой стали с гладкими концами.
(d) Различные марки нержавеющей стали допускают значительные колебания массы (веса). Ферритные нержавеющие стали могут быть примерно на 5% меньше, а аустенитные — примерно на 2% больше значений, указанных в данной таблице, которые основаны на массе (весе) углеродистой стали.
ПРИМЕЧАНИЯ:
(1) Указанная толщина стенки не позволяет нарезать резьбу в соответствии с ASME B1.20.1.
(2) Эти размеры не соответствуют ASME B36.10.
